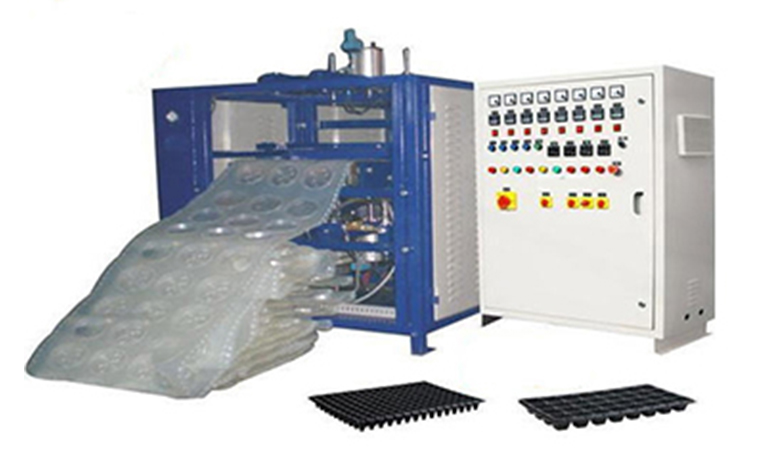

Automatic Vacuum Forming Machine


Our offered Automatic Vacuum Forming Machines? are best in class and functionality. Due to some matchless features lie exact forming area, high functional speed, precise dimensions of the control panel, exact weight, etc. these are demanded widely in disposable products manufacturing industries. The customers can avail these with us at the most economical rates. Some features that make these flawless are:


  • Fully automatic roll forming, feeding, clamping, loading and unloading and heating.
  • Installed with True Infra-Red Ceramic essentials for power consumption and even heat distribution.
  • For suiting to the shape and size of the making die for reducing the material wastage the thickness and travel of roll is adjustable in the machinery
  • On line inclined or vertical slitting arrangement for disposing of scrap and installed with in-line cutting requirements
  • Can be used for several materials like HIPS, PVC to 1.5 mm width and EPS to 3 mm width
  • For dies cooling, in-built water circulation system is installed
  • For making shallow plates, boxes, lids, disposable economic system is given

  • Applications:

    1. Containers For Fruits, Vegetable And Sweets. 2. Cups, Lids And Glasses. 3. Plates, Donas, Etc.

    Technical Specifications:


    SST-VFM 60X60

    Forming Area

    600 x 600

    Maximum Speed

    20 Cycle Per Minute

    Vacuum Pump 500LMV

    Make Acmevac

    Pneumatic Itmes


    Ceramic Heater

    Elstein Make Germany


    Make Selectron

    Maximum Draw

    100 mm

    Electronics Items

    Make L&T

    Material which can be used


    Electrical Load

    12 KW

    Motor 3 Phase

    2 HP
