THERMOFORMING MOULD

THERMOFORMING MOULD

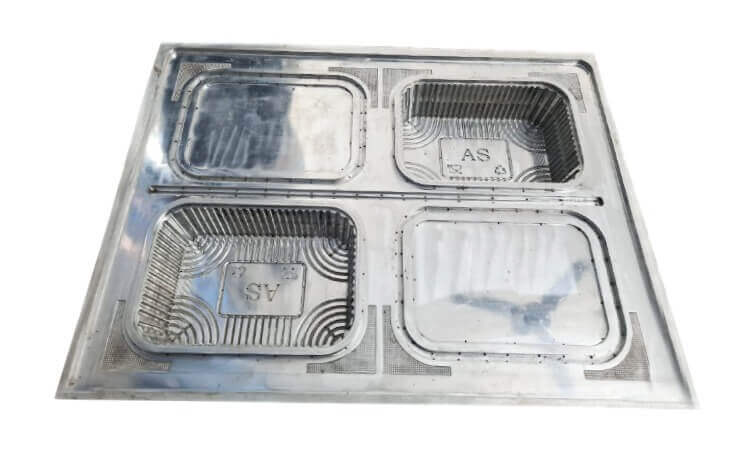

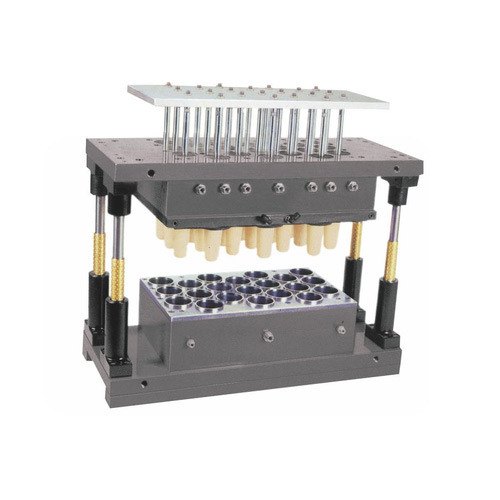

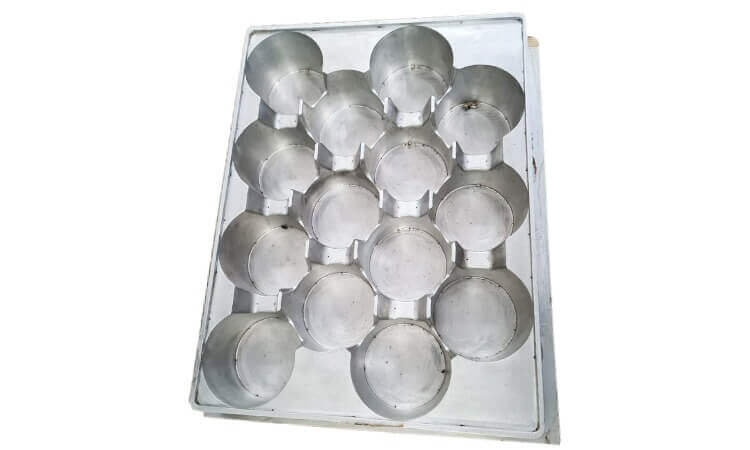

As per the special requirements of the clients, we manufacture various types of Thermoforming & Vacuum Forming Molds. These are manufactured to provide perfect shape and dimensions to donas, plates, food trays, etc. We use aluminum as the basic product in their manufacturing using CAD/CAM technology. These are known for their precise dimensions, strength, quality, capability to with stand high temperature and pressure, etc. Moreover, the clients can avail these with us on the best prices in the industry

Features:

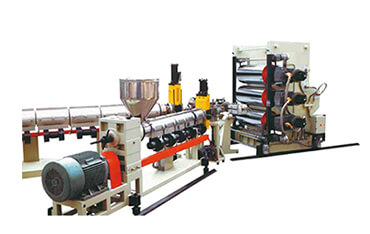

  • Separately driven Inclined/ Driven Calendar Unit.
  • For greater finish and superb thickness control, accurately fabricated toughened rollers and mirror finished smooth surface is give.
  • For rapid modification of products feature for hydraulic/motorized adjustment of gap space for calendar roll is given
  • Flat sheet dies and Multilayer feed block
  • For maintaining similar thickness and pressure control, melt pumps are installed
  • PLC with touch screen are given for automation

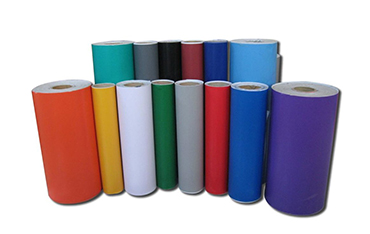

  • 2/3 positioned Turret Winder and specifically intended winding arrangement for Jumbo Rolls
  • Provision for Online trim recycling
  • Minimum cost for per ton installation capacity

  • Applications:

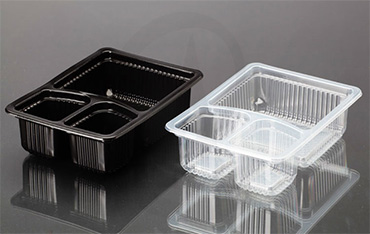

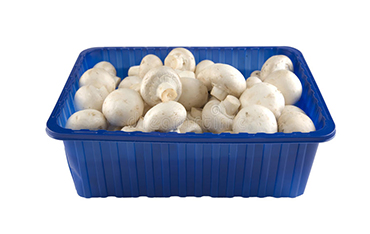

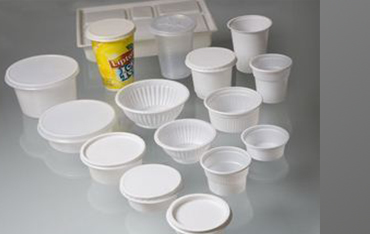

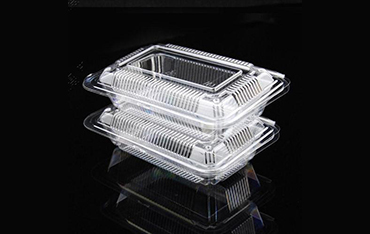

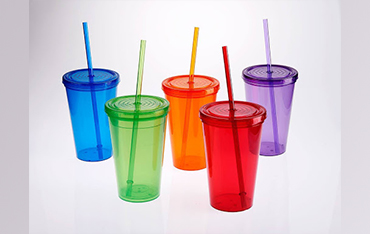

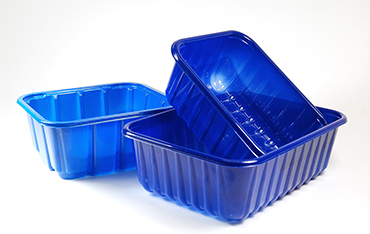

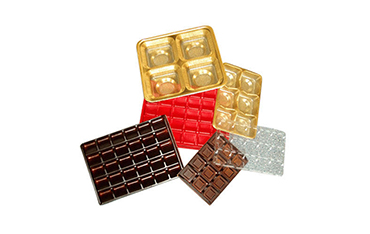

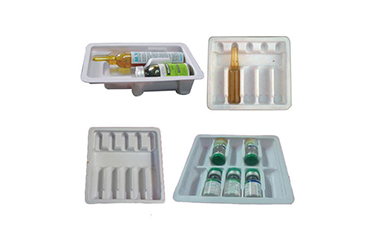

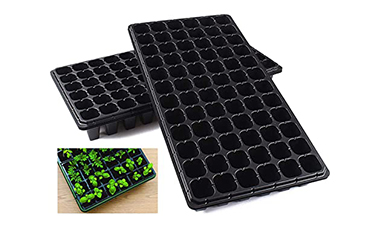

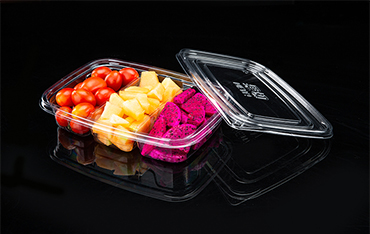

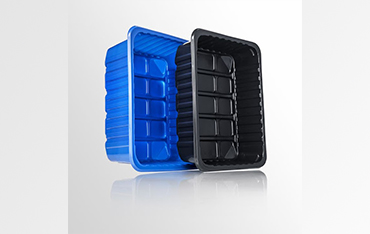

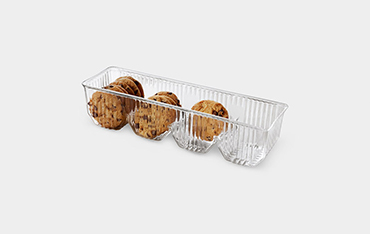

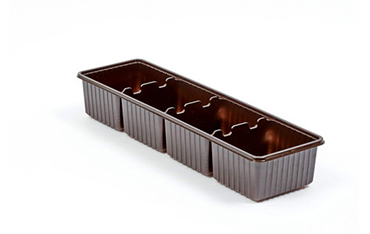

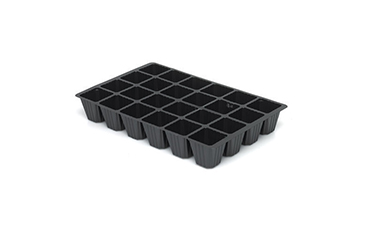

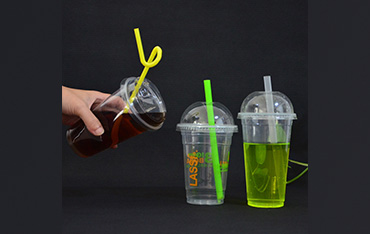

    Cups And Bowls For Ice Creams, Milk, Yoghurt And Other Dairy Products Disposable Glasses & Cups Containers & Boxes For Vegetable, Fruits And Packaging Of Sweets Microwave Oven Friendly Meal Trays Agricultural Items, Flower Pots And Transit Trays



    • Technical Specifications:

      Plant Model

      Sai TD 75

      Sai TD 90

      Screw Dia

      75

      90

      Ratio

      30:1

      30:1

      Max. Sheet

      540

      540-750

      Sheet Thickness (mm)

      0.3 to 1.5

      0.3 to 1.5

      Max. Output

      120-160

      160-200

      Main Drive (HP)

      40

      50

      Load (HP/KW)

      62kw

      75kw

      Dimensions (L X W X H)

      8 X 2.5 X 2

      9 X 2.5 X 2
