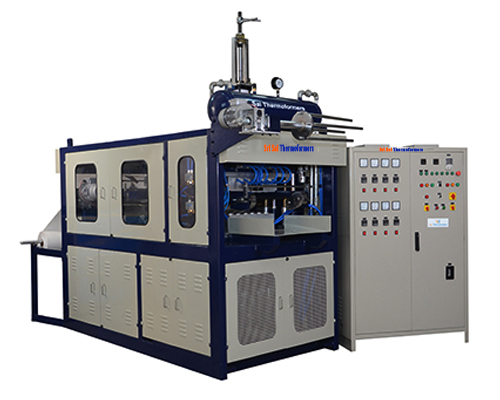

THERMOFORMING GLASS MACHINE
Our fully automatic and durable for long-run Thermoforming Glass Machines are fabricated by experts as per the latest industry trends. These are widely cherished among the customers for faster and convenient operation and handling, low maintenance requirements and cost, easier installation, low power consumption, and effective design. These are demanded in the food processing and beverage industry for forming disposable glasses and cups using HP/PE/PS material. Some of the unmatched features of these
Features:
- Our newest range of hydraulics sequences is installed with Heavy duty hydraulic system for long run durability and less maintenance requirements
- For ease of operation and durability it is installed with effectually intended chain transit unit
- PLC controlled system with touch screen
- For uniform speed for improved forming quality and save on air feeding, Servo Motor Controlled Plug model is used
- Two air tanks, greater frame structure, projected cover for heating tray are a few differential features
Applications:
Suitable For All Types Of Round Or Square Disposable Cups And Glasses.
Technical Specifications:
Plant Model | Unit | SIT TFM 30x60 | SIT TFM 35 x 60 |
Material | Sheet | HIPS/PP | HIPS/PP |
Sheet Width Range | Mm | 300*600 | 350*600 |
Sheet Thickness Range | Mm | 0.30 to 1.0 | 0.30 to 1.25 |
Forming Area | Mm | 300*600 | 350*600 |
Max. Speed | Cycle/mm | Hips 35/PP33 | Hips 38 / PP 35 |
Max. Draw Depth | Mm | 100 | 120 |
Max. Servo Motor Drive | Kw | 10.0 HP - ABB | 15 HP - ABB |
Top Heating Load | Kw | 31.0kw / 48 Heaters | 35.0kw/ 48 Heaters |
Bottom Heating Load | Kw | 26.0kw/40 Heaters | 29.0kw/ 40 Heaters |
Running Load | Kw | 70.0kw | 76.0kw |
Control Panel Dimensions | Inches | L*W*H- 124"*46"*70" | L*W*H 126"*48"*71" |
Machine Dimensions | Inches | L*W*H- 150"*120"*110" | L*W*H 170"*150"*120" |
Approx. Weight | - | 3000 kg | 3500 kg |
