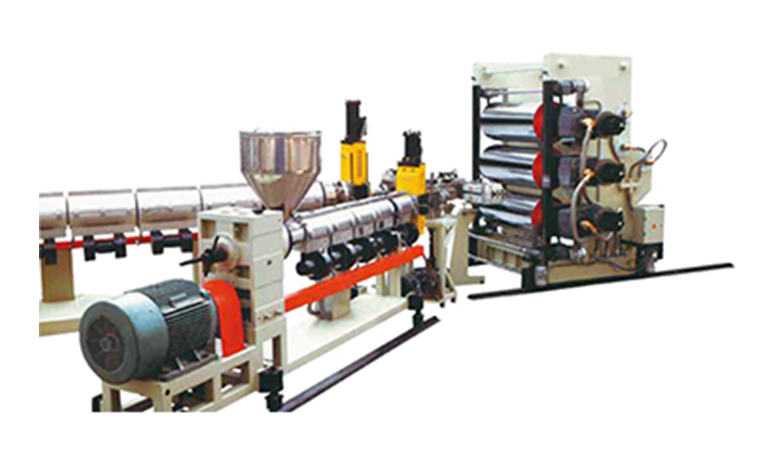

T-DIE SHEET PLANT - PP/HIPS

Manufactured as per the standards of the industry, our T-Die Sheet Plant - PP/HIPS are widely reckoned in the market for their superb thickness control, fine surface finish, and easy installation. Easy handling, fast operational speed, and quality of controlling pressure for homogenous thickness are some of the reasons, which make these machines suitable for the manufacturing of products like disposable, cups, plates, donas, bowls, and so on.

Features:

  • Separately driven Inclined/ Driven Calendar Unit.
  • For greater finish and superb thickness control, accurately fabricated toughened rollers and mirror finished smooth surface is give.
  • For rapid modification of products feature for hydraulic/motorized adjustment of gap space for calendar roll is given
  • Flat sheet dies and Multilayer feed block
  • For maintaining similar thickness and pressure control, melt pumps are installed
  • PLC with touch screen are given for automation
  • 2/3 positioned Turret Winder and specifically intended winding arrangement for Jumbo Rolls
  • Provision for Online trim recycling
  • Minimum cost for per ton installation capacity
  • Applications:

    Cups And Bowls For Ice Creams, Milk, Yoghurt And Other Dairy Products Disposable Glasses & Cups Containers & Boxes For Vegetable, Fruits And Packaging Of Sweets Microwave Oven Friendly Meal Trays Agricultural Items, Flower Pots And Transit Trays


    Technical Specifications:

    Plant Model

    Sai TD 75

    Sai TD 90

    Screw Dia

    75

    90

    Ratio

    30:1

    30:1

    Max. Sheet

    540

    540-750

    Sheet Thickness (mm)

    0.3 to 1.5

    0.3 to 1.5

    Max. Output

    120-160

    160-200

    Main Drive (HP)

    40

    50

    Load (HP/KW)

    62kw

    75kw

    Dimensions (L X W X H)

    8 X 2.5 X 2

    9 X 2.5 X 2
